Refrigerant Line Charge Calculator

Calculate additional refrigerant charge needed for extended line sets based on line length, diameter, and refrigerant type.

Share this calculator

Result

16.3 oz

Total refrigerant charge needed for line set.

Liquid line charge
14.58 oz
Suction line charge
1.72 oz
Total in pounds
1.02 lbs
Liquid line volume
33.13 cu in
Suction line volume
132.54 cu in

Also in Plumbing & HVAC

HVAC Refrigerant

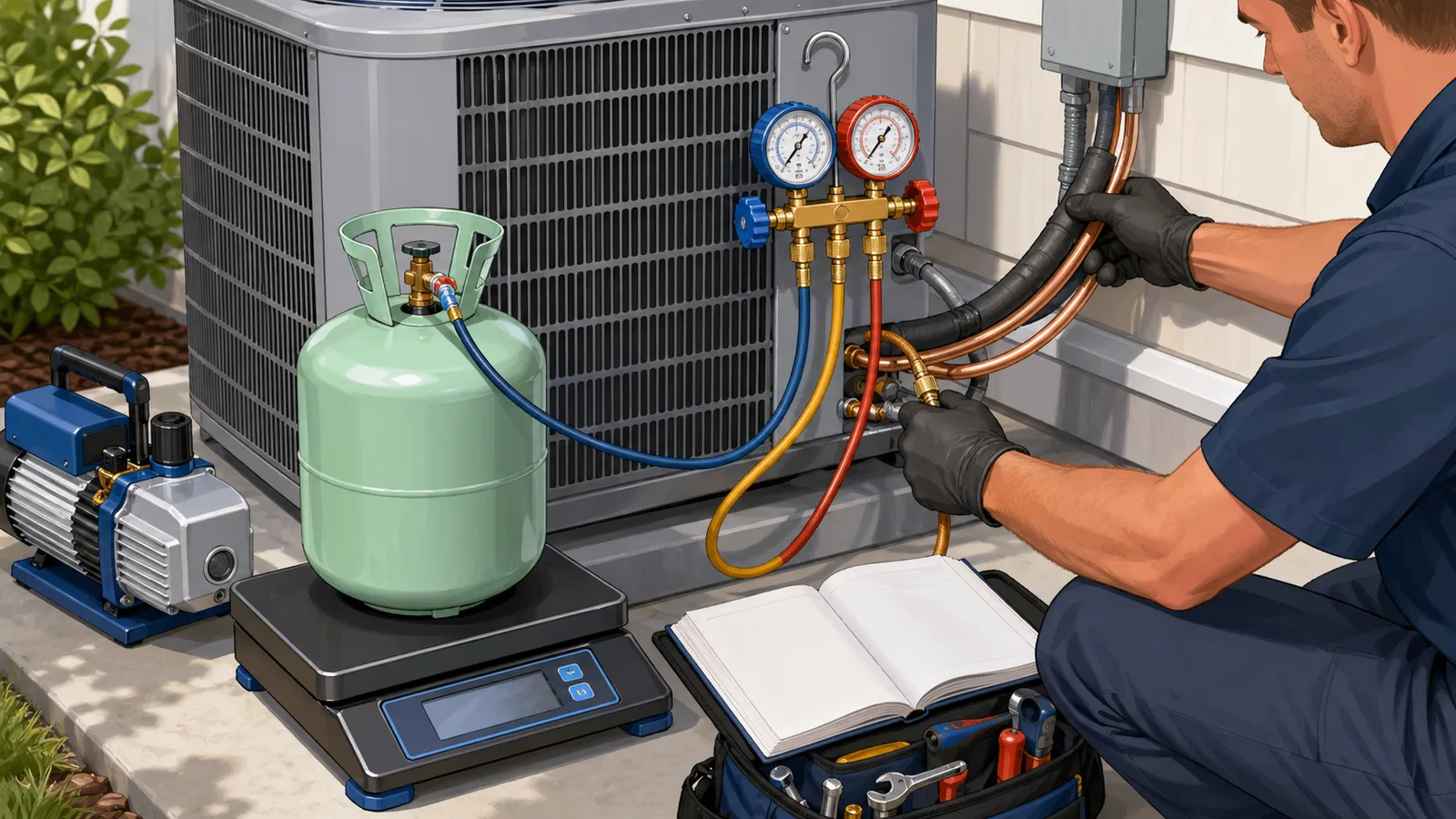

Calculating additional refrigerant for extended line sets

A refrigerant line charge calculator determines how much extra refrigerant must be added when the liquid line between the condenser and evaporator exceeds the factory pre-charge distance. This guide explains per-foot charge rates, line diameter, and common refrigerant types.

Factory charge and additional charge

Split-system air conditioners and heat pumps ship with a factory refrigerant charge sized for a standard line set length, typically 15 to 25 feet depending on the manufacturer. When the installed line set is longer, additional refrigerant must be added at a rate specified in the installation manual, measured in ounces per foot of liquid line.

The additional charge depends on the liquid line diameter (usually 3/8 inch or 1/4 inch) and the refrigerant type. R-410A systems commonly require about 0.6 ounces per foot of 3/8-inch liquid line.

Additional charge = (Actual length - Factory length) x Charge per foot

Charge per foot is specified by the equipment manufacturer in ounces per foot of liquid line.

Maximum line length

Every system has a maximum allowable line set length and a maximum vertical rise. Exceeding these limits can cause oil return problems, reduced capacity, and compressor damage. Always check the manufacturer installation guide for your specific model.

Frequently asked questions

What happens if I undercharge the system?

An undercharged system loses cooling capacity, runs longer, and can overheat the compressor. Superheat at the evaporator will be higher than normal.

Do I add charge based on suction line or liquid line length?

Additional charge is calculated from the liquid line length. The suction line carries vapor and contributes negligible weight per foot compared to the liquid line.
